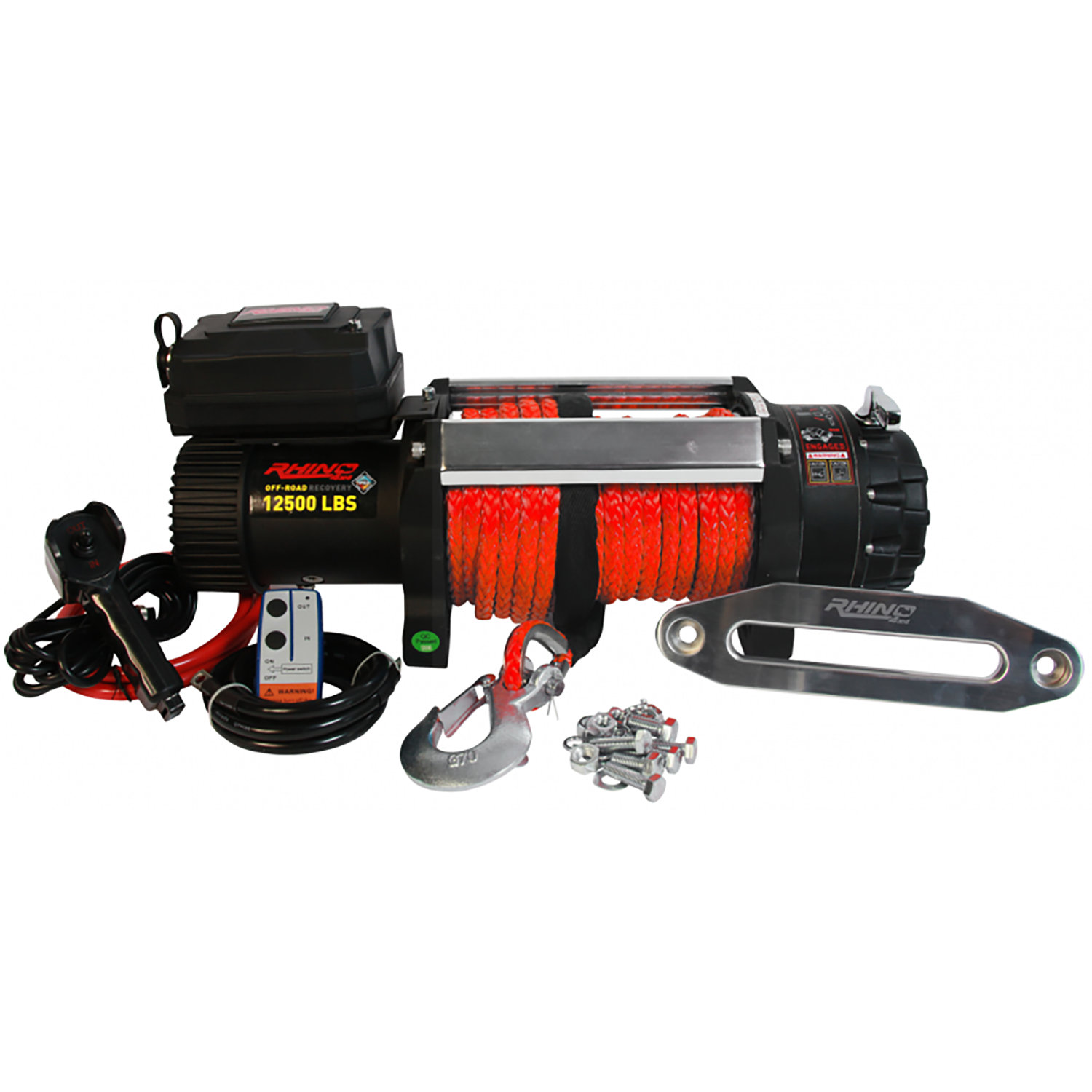

Rhino4x4 12,500LB Winch with Synthetic Rope

Rhino4x4 12,500LB Winch with Synthetic Rope

Regular price $1,025.00 AUD
Regular price Sale price $1,025.00 AUD
Sale Sold out
Tax included.

Rhino4x4 12,500LB Winch – with all the included features, great price and added looks its hard to go past a rhino winch.

-Tough heavy duty materials
-12500 lbs
-Dyneema rope
-wired and integrated wireless remote control
-Free battery isolator switch with key
-Power cables pre insulated to save you time and money during install
-Standard with remote control plug in extension cable enabling easy remote mounting of box.
-Internal braking system
-Robust gearing
-IP68 rated to ensure no dust and water ingress
-Backed by our Huge 5 year warranty

Product Specifications

Rated line pull: 12500 Lbs (5670kgs) single line.
Motor: Series wound 6.0 hp /4.4kw,12V DC
Gear Train: 3 stage planetaryGear
Ratio: 262:1
Clutch: Sliding Ring gear
Braking action: Automatic in drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø11mmX24m
Drum size: 2.5″×9.0″(63mm×224mm)
Dimensions: 23″×6.7″×8.4″( 584mm×170mm×214mm)
Mounting bolt pattern: 10″×4.5″(254mm×114.3mm)
Battery: Recommended 650 CCA minimum
Winching 32 square mm,72″(1.83m)
N.W: 30kgs
Packing: 620mm X 200mm X 390mm

Will fit PX2/PX3 Ranger/Raptor (not 2LT), Ford Everest 15+, BT50, NP300, Y62 Patrol, Colorado 17+, LC200 15+ and Fortuner 15+, RAM 1500 & 2500, MQ Triton (rotation may be required)
